Pre-Polished Fiber Connectors

LS Simple™ Fiber Adaptor & Connector Solution

Pre-polished for easy installation. Performance exceeds ANSI/TIA-568-A with very low insertion loss.

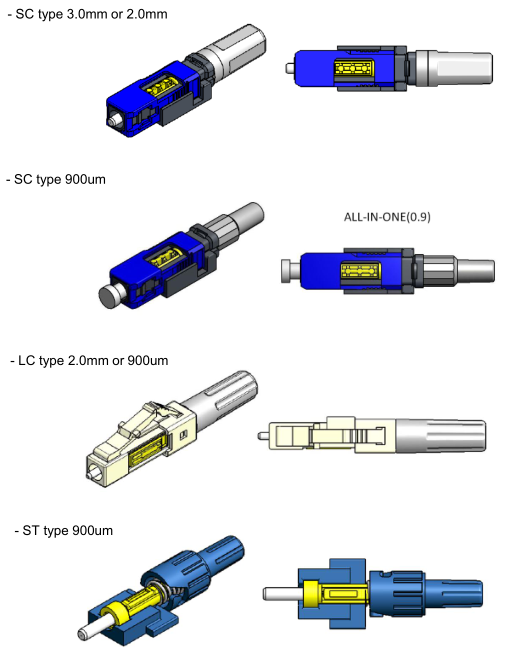

Fiber Optic Connectors & Adaptors are available in LC, SC, ST configurations for MM and SM.

LS Simple™ Field Installable Optical Connector
. Cable connectors without polishing
. Enables fast and on-site installation of connectors
. Using a simple tool and recycled several times
. Telcordia GR-326
. Quick and Easy Fiber Termination
. High success rate of connection
. Superior optical characteristic value
. No failure after opening

Inquiries/Quotations? Email us at: [email protected]

Or Call/Text: +63-9209091854

Categories: , ,

SC Field Installation Demo:

LC Field Installation Demo:

Standard TIA/EIA-604-3[SC], TIA/EIA-604-10[LC], TIA/EIA-604-2[ST]
Insertion Loss Typ. 0.3dB / Max. 0.5dB
Return Loss ≥50dB [PC type]
Endurance ≤0.3dB / 500times reconnection
Tension ≤0.2dB change [3.0mm, 2.0mm type] / Max. 2kg

≤0.2dB change [900µm type] / Max. 0.75kg
Vibration ≤0.2dB change / 10-55Hz / 0.75 amplitude
Temperature ≤0.3dB change / -40°C ~ +75°C / 21 times
End Face Geometry [Based on GR-326] PC type
Ferrule End Face Radius(mm) 7~25
Fiber Undercut(nm) ≤125
Fiber Protrusion(nm) ≤50
Apex Offset(µm) ≤50

Spec Sheet: Pre-polished fiber connector
