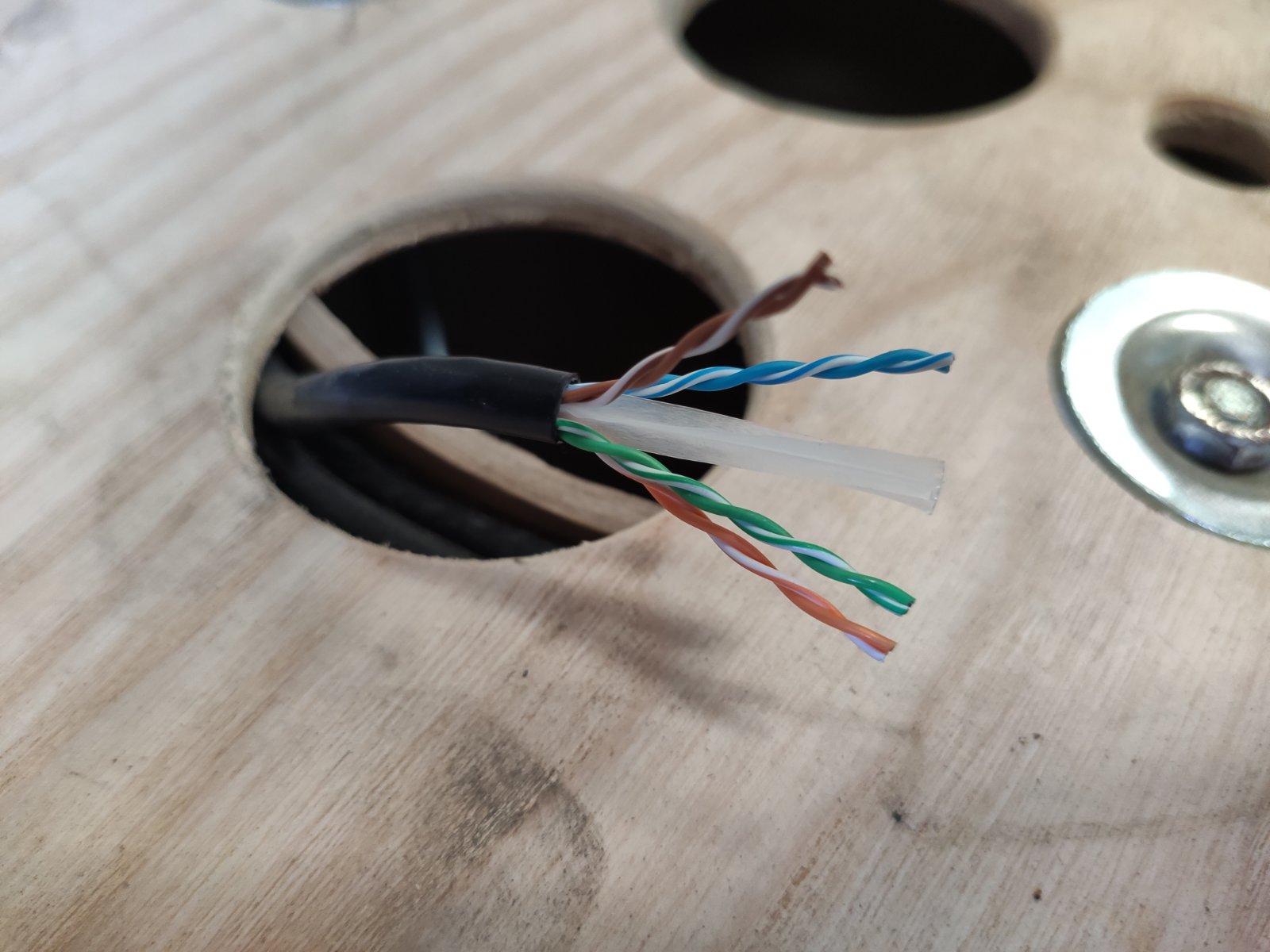

U/UTP Cat 6 Outdoor
U/UTP Cat 6 Outdoor - Image 2
U/UTP Cat 6 Outdoor - Image 3
, ,

U/UTP Cat 6 Outdoor

  • Cable diameter:6.0±0.2 (mm)
  • AWG 26 Copper Conductors
  • Qualifies for the LS 25-year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
  • Capable of handling full broadband and baseband video signals
  • ANSI/TIA-568-C.2 and RoHS Compliant
  • Specialized print legend contains footage or metric or dual marking
  • Easy-access wooden reel packaging

See below for specifications.

Inquiries/Quotations? Please email us at: [email protected]

Or Call/Text: +63-9209091854

Categories: , ,

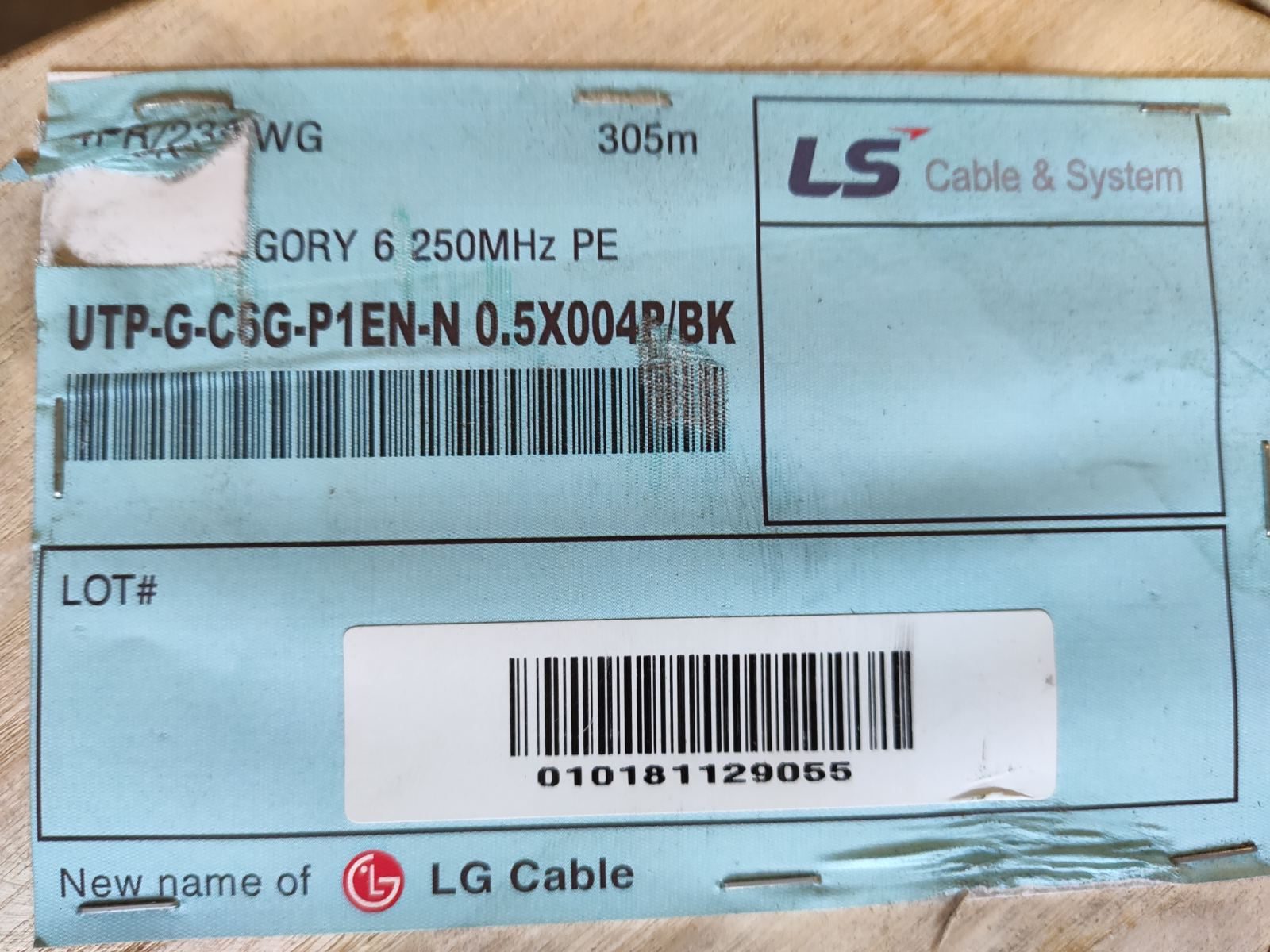

LS Cable & System U/UTP Cat 6 Outdoor Cable: UTP-G-C6G-P1EN-N 0.5X004P/BK

Characteristics units Cat.6
DC Resistance Ω/100m ≤ 9.38
DC Resistance Unbalance % ≤ 5.00
Mutual Capacitance nF/100m ≤ 5.60
Capacitance Unbalance

(Pair to Ground)

 pF/100m ≤ 330
Insulation Resistance MΩ-100m ≥ 500
Dielectric Strength DC kV/sec 2.5 / 2
Impedance

(Characteristic mean)

 Ω 100 ± 15%  (1 ≤ f ≤ 250MHz)
Return Loss dB/100m ≥ 20 + 5 * log(freq)       , 1     ≤  f ＜   10MHz

≥ 25                                , 10   ≤  f ＜  20MHz

≥ 25 – 7 * log(freq/20)  , 20   ≤  f ≤  250MHz
Attenuation

(Insertion Loss)

 dB/100m ≤ 1.808*√(freq) + 0.20*(freq) + 0.20/√(freq)

, 1 ~ 250 MHz
NEXT Loss dB/100m ≥ 44.3 – 15*log(freq/100) , 1 ~ 250MHz
Power sum NEXT Loss dB/100m ≥ 42.3 – 15*log(freq/100) , 1 ~ 250MHz
ELFEXT Loss dB/100m ≥ 27.8 – 20*log(freq/100) , 1 ~ 250MHz
Power sum ELFEXT Loss dB/100m ≥ 24.8 – 20*log(freq/100) , 1 ~ 250MHz
Propagation Delay ns/100m ≤ 534 + 36 / √(Freq) , 1 ~ 250MHz
Propagation Delay Skew ns/100m ≤ 45

Application:

  • Horizontal Distribution & Backbone Cabling
  • 4/16Mbps Token Ring (IEEE 802.5)
  • 10/100/1000/10G BASE-T (IEEE 802.3)
  • 155Mbps ATM
  • 100Mbps TP-PMD
  • ISDN, ADSL
  • ATM LAN 1.2G
